3 Way 4A100 Series 4A110-06 4A120-M5 4A130C0-08

Ask Lasest Price
Brand Name :	Airtac
Model Number :	4A110-M5 4A130C-M5 4A110-06 4A130C-06
Certification :	CE ROHS
Price :	1-50
Payment Terms :	Paypal , T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :	1000
Delivery Time :	2-10

Add to Cart

Product Details
Company Profile

Air Tac Valve 5/2 Way 5/3 Way 4A100 Series 4A110-06 4A120-M5 4A130C0-08

Specification

4A 100 Series Specification

Model	4A110-M5 4A120-M5	4A130C-M5 4A130E-M5 4A130P-M5		4A110-06 4A120-06	4A130C-06 4A130E-06 4A130P-06
Fluid	Air(to be filtered by 40μm filter element)
Acting	Exterior control
Port size [Note1]	In=Out= M5			In=Out= 1/8”
Orifice size	5.5mm² (Cv=0.31)	5.0mm² (Cv=0.28)		12.0mm² (Cv=0.67)	9.0mm² (Cv=0.50)
Valve type	5 port 2 position		5 port 3 position	5 port 2 position	5 port 3 position
Operating pressure	0.15~0.8MPa(21~114psi)
Proof pressure	1.2MPa(175psi)
Temperature	-20~70°C
Material of body	Aluminum alloy
Lubrication [Note2]	Not required
Max.frequency[Note3]	5 cycle/sec		3 cycle/sec	5 cycle/sec	3 cycle/sec
Weight (g)	4A110-M5:85 4A120-M5:140	165		4A110-06:85 4A120-06:140	165

[Note1] PT thread , G thread and NPT thread are available.

[Note 2] Once lubricated air is used , continue with same medium to optimise valve life span. Lubricants like ISO VG32 or equivalent are recommended.
[Note 3] The maximum actuation frequency is in the no-load state.

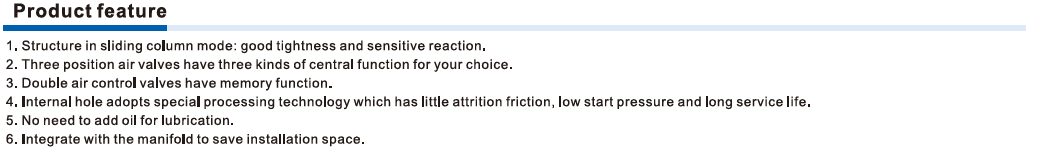

Product Feature

Flow Chart

Dimension
