16 bar water fountain solenoid valve air explosion for water
fountain 1 / 2 inch to 6 inch
16 bar water fountain solenoid valve air explosion for water
fountain 1/2" - 6" inch
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLWU3 15, 20, 25, 1/2" to F6" G- G S-SS304 V-FRM/Viton F14B 1-AC220V 2-DC24V
32, 40, 50 N- NPT Z- Cast Steel N-NBR F24B 3-AC110V 4.DC12V
65, 80, 100 F-Flange E-EPDM 5-AC24V
125, 150
NLWU3, Underwater solenoid valve cast iron body for water fountain 2
inch 25 bar
Example : NLWU3 65 FZN Y21H1: NLWU3 Series, NC, 65mm orifice, Flange 2-1/2" inch, Cast steel,
NBR, AC220V.
2. Solenoid Valve Specification
Medium: Water Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 15 , 20, 25, 32, 40, 50, 65, 80 EPDM seal:-30℃~120℃(-22℉~248℉)
100, 125, 150(mm) Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLWU3:0.03MPA~1.6MPA (4.5PSI~230PSI) Port thread: NPT, G Thread, Flange
NLWU3-F:0.1MPA~1.6MPA (14.5PSI~230PSI) Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2", F2-1/2"
F3", F4", F5", F6"
Voltage: DC:12VDC, 24VDC Coils: F14B 26VA(AC)6IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC F24B 13W(DC),IP65,100%ED
Tolerance: ±10% Character: 1. Special for water fountain
Material: Body- Brass 2. 1/2" to 4 inch available
Seal- VITION, EPDM 3. Underwater application.
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper

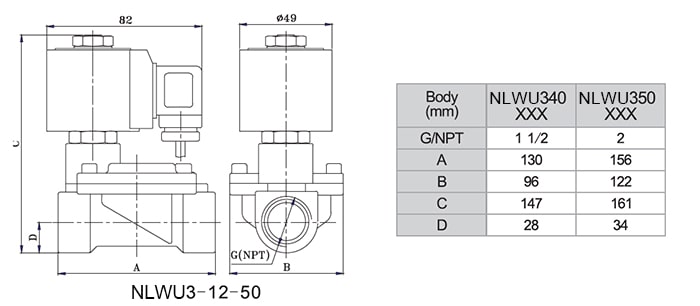

3. Dimension
4. Specification Detail
NLWU3, Underwater solenoid valve cast iron body for water fountain
1/2"- 2 inch 25 bar thread connection
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(26VA) | DC(13W) |
| NLWU315XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa |
Cast Steel
Stainless Steel
| Viton (FKM) EPDM NBR | F14B F24B |
| NLWU320XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU325XXX | 1" | 25 | 12 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU332XXX | 1-1/4" | 32 | 24 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU340XXX | 1-1/2" | 40 | 30 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU350XXX | 2" | 50 | 48 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
NLWU3-F, Underwater solenoid valve cast iron body for water
fountain 2.5-6 inch 25 bar Flangeconnection
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(26VA) | DC(13W) |
| NLWU365FXXX | F2-1/2" | 65 | 85 | 0.1Mpa | 1.6Mpa | 1.6Mpa |
Cast Steel
Stainless Steel
| Viton (FKM) EPDM NBR | F14B F24B |
| NLWU380FXXX | F3" | 80 | 125 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU3100FXXX | F4" | 100 | 160 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU3125FXXX | F5" | 125 | 200 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU3150FXXX | F6" | 150 | 320 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
