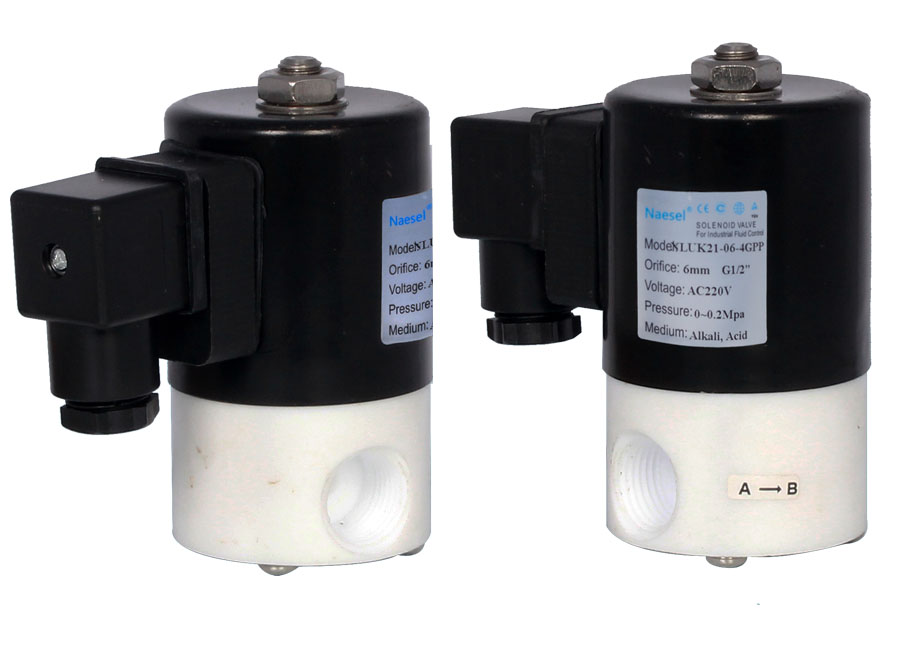

Food Safe Solenoid Silicone Seal PTFE Teflon Body Direct Acting 2
port 1 / 2 inch 58 Psi 0.4Mpa
Food Safe Solenoid Silicone Seal PTFE Teflon Body Direct Acting 2
port 1 / 2 inch 58 Psi 0.4Mpa
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLUK21 3, 6(mm) 1/8" G- G P-PTFE P-PTFE Y82B 1-AC220V 2-DC24V
1/4" R- BSPT (teflon) YD1B 3-AC110V 4-DC12V
3/8" N-NPT 5-AC24V
1/2"
NLUK21 Food Safe Solenoid Silicone Seal PTFE Teflon Body Direct
Acting 2 port 1 / 2 inch 58 Psi 0.4Mpa
Example : NLUK2160 4 NPP Y82B1: NLUK21 Series, normal closed, 6.0mm orifice, G1/2", PTFE body, PTFE
seals 220V.
2. Solenoid Valve Specification
Medium: corrosive fluid, acid, alkali etc. Temperature: PTFE seal:-60℃~200℃(-76℉~392℉)
Orifice: 3.0, 6.0(mm)
Pressure: NLUK21:0.0MPA~0.15MPA (0PSI~21PSI) Port size: 1/8”, 8/4”, 3/8", 1/2”, 3/4", 1"
Tolerance: ±10% Port thread: BSPT, G, NPT Thread
Voltage: AC220V DC24V DC12V AC110V AC24V Coils: Y82B, YD1B
Material: Body- PTFE Character: 1.Isolation Piston structure, longer life time,
Seal-PTFE new PTFE seals, ambient is completely isolated
Armature- SS304 from metal parts
Plunger- SS430F 2. used in Alkali, Acid, Salts etc.
Stop- SS430F
Spring- SS304
3. Detailed Information
Food Safe Solenoid Silicone Seal PTFE Teflon Body Direct Acting 2
port 1 / 2 inch 58 Psi 0.4Mpa
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material |
| AC(6VA) | DC(5W) |
| NLUK2130XXX | 1/8" | 3.0 | 0.1 | 0.0Mpa | 0.3Mpa |
PTFE
|
PTFE |
| | | | | AC(20VA) | DC(28W) |
| NLUk21601XXX | 1/4" | 6.0 | 0.28 | 0.0Mpa | 0.15Mpa |
| NLUK21602XXX | 3/8" | 6.0 | 0.28 | 0.0Mpa | 0.15Mpa |
| NLUK21603XXX | 1/2" | 6.0 | 0.28 | 0.0Mpa | 0.15Mpa |
| NLUK21604XXX | 3/4" | 6.0 | 0.28 | 0.0Mpa | 0.15Mpa |
| NLUK21606XXX | 1" | 6.0 | 0.28 | 0.0Mpa | 0.15Mpa |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
