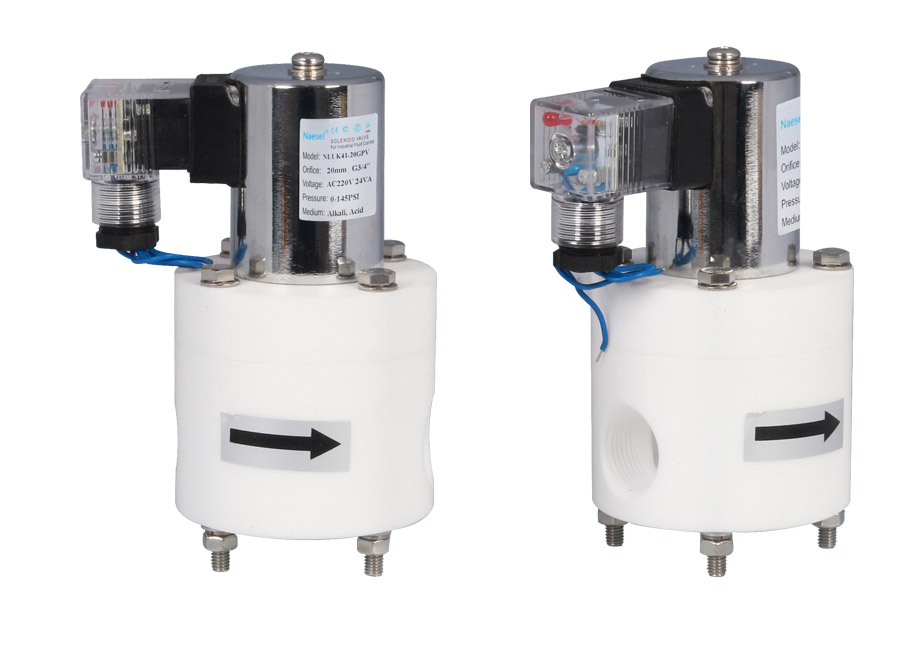

Chemical Resistant Solenoid Valve Teflon G 1 / 2 to 2 Inch for
Aggressive Acid Weak Alkali AmbientChemical Resistant Solenoid Valve Teflon G 1 / 2 to 2 Inch for
Aggressive Acid Weak Alkali Ambient
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLUK41 15, 20, 25, 1/2" , 3/4", G- G P-PTFE E-EPDM YC1B 1-AC220V 2.DC24V
32, 40, 50 1", 1-1/4", R- BSPT V-FRM/Viton YE1B
1-1/2", 2" YF1B
NLUK41 Chemical Resistant Solenoid Valve Teflon G 1 / 2 to 2 Inch
for Aggressive Acid Weak Alkali Ambient
Example : NLUK4115 GPV YC1B1: NLUK41 Series, normal closed, 15mm orifice, G1/2", PTFE body, FKM
seals, coil YC1B, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: EPDM seal:-30℃~120℃(-22℉~248℉)
Orifice: 15, 20, 25, 32, 40,50(mm) Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLUK41:0.01MPA~0.6MPA (2PSI~87PSI) Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2”
Tolerance: ±10% Port thread: BSPT, G Thread
Voltage: AC220V DC24V Coils: YC1B, YE1B, YF1B
Material: Body- PTFE Character: 1.Isolation Piston structure, longer life time,
Seal- VITION, EPDM, PTFE new PTFE seals, ambient is completely
isolated
Armature- SS304 from metal parts
Plunger- SS430F 2. used in Alkali, Acid, Salts etc.
Stop- SS430F
Spring- SS304
3. Detailed Information
Chemical Resistant Solenoid Valve Teflon G 1 / 2 to 2 Inch for
Aggressive Acid Weak Alkali Ambient
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material |
| NLUK4115XXX | 1/2" | 15 | 4 | 0.01Mpa | 0.6Mpa |
PTFE
|
PTFE EPDM Viton (FKM) |
| NLUK4120XXX | 3/4" | 20 | 5.5 | 0.01Mpa | 0.6Mpa |
| NLUk4125XXX | 1" | 25 | 13 | 0.01Mpa | 0.6Mpa |
| NLUK4132XXX | 1-1/4" | 32 | 17 | 0.01Mpa | 0.6Mpa |
| NLUK4140XXX | 1-1/2" | 40 | 25 | 0.01Mpa | 0.6Mpa |
| NLUK4150XXX | 2" | 50 | 40 | 0.01Mpa | 0.6Mpa |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
