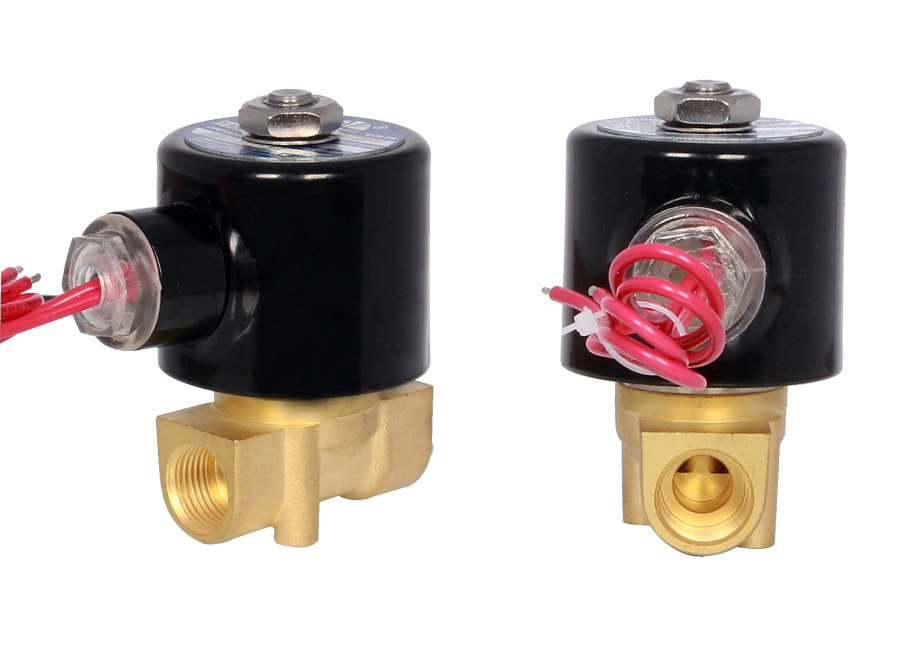

Miniature Solenoid Valve Water Control DC48V 24V AC24V AC240V
Direct Acting Viton Seal Inclusion DIN Coil
2W025-06/08 Miniature Solenoid Valve Water Control DC48V 24V AC24V
AC240V Direct Acting Viton Seal Inclusion DIN Coil
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
2W025 2.5, 3.5, 4.0, G- G B-Brass N-NBR Y12B 1-AC220V 50/60HZ 2-DC24V
2W035 5.0 N- NPT S-SS304/316 E-EPDM Y32B 3-AC110V 4-DC12V
2W040 V-FRM/Viton 5-AC24V
2W050
2W025 Miniature Solenoid Valve Water Control DC48V 24V AC24V AC240V
Direct Acting Viton Seal Inclusion DIN Coil
2W035 miniature direct acting solenoid valve normal closed with
iron coil shell 0-1.0mpa 1/4" port
Example : 2W025 NBV S91B1: normal closed, 2.5mm orifice, G1/8", brass body, FKM seals, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 2.5, 3.5, 4.0, 5.0(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: 2W025:0.01MPA~0.7MPA (0PSI~100PSI) Port thread: NPT, G Thread
2W040:0.01MPA~1.0MPA (0PSI~145PSI) Port size: 1/8”, 1/4”, 3/8”
Voltage: DC:12V, 24V, Coils: Y32B,40VA(AC),18W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V/60HZ Y12B,25VA(AC),16W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Direct acting
Seal- VITION, NBR, EPDM, PTFE 2. 0 bar started
Armature- SS304 3. low pressure system
Plunger- SS430F 4. widely used
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
2W025 Miniature Solenoid Valve Water Control DC48V 24V AC24V AC240V
Direct Acting Viton Seal Inclusion DIN Coil
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(25VA) | DC(16W) |
| 2W025XXX | 1/8" | 2.5 | 0.25 | 0.0Mpa | 0.7Mpa | 0.7Mpa | Brass | NBR EPDM Viton (FKM) | Y12B |
| 2W035XXX | 1/4" | 3.5 | 0.34 | 0.0Mpa | 0.5Mpa | 0.5Mpa | Y12B |
| 2W040XXX | 1/4" | 4.0 | 0.5 | 0.0Mpa | 0.4Mpa | 0.4Mpa | Y12B |
| 2W050XXX | 1/4" | 5.0 | 0.71 | 0.3Mpa | 0.3Mpa | 0.3Mpa | Y12B |
2W040 series miniature solenoid valve normal closed, 0~10bar with
Y32B Coil
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(40VA) | DC(18W) |
| 2W040XXX | 3/8" | 4.0 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | Y32B |
| 2W050XXX | 3/8" | 5.0 | 0.7 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y32B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
