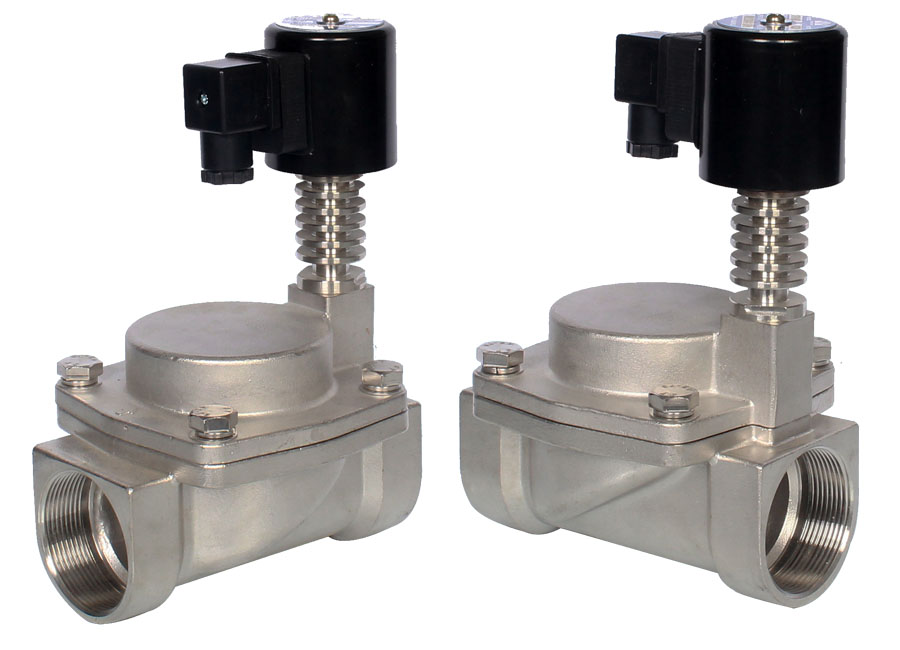

Pilot Solenoid Valve NPT 3 / 4 " High Temperature 650 ℉ Fluid 3 / 8
to 2 Inch Thread 1 to 2 Inch Flange
Pilot Solenoid Valve NPT 3 / 4 " High Temperature 650 ℉ Fluid 3 / 8
to 2 Inch Thread 1 to 2 Inch Flange
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLKT11 12, 15, 20 3/8"-2" G- G B-Brass P-PTFE Y21H 1-AC220V 2.DC24V
25, 32, 40, N- NPT S-SS304/316 T-FPEEK 3-AC110V 4.DC12V
50, F-Flange 5-AC24V
NLKT11 Pilot Solenoid Valve NPT 3 / 4 " High Temperature 650 ℉
Fluid 3 / 8 to 2 Inch Thread 1 to 2 Inch Flange
Example : NLKT11 32 1 GBP S91B1: NLKT11 type, normal closed 32mm orifice, G1-1/4", brass body, PTFE
seals.
2. Solenoid Valve Specification
Medium: hot water, steam, oil, etc. Temperature: PEEK seal:-150℃~350℃(-238℉~662℉)
Orifice: 12, 15, 20, 25, 32,40,50, PTFE seal:-60℃~200℃(-76℉~392℉)
65, 80, 100, 125,150(mm)
Pressure: NLK31:0.05MPA~1.6MPA (7.5PSI~232PSI) Port size: 3/8”, 1/2”, 3/4”, 1” , 1-1/4", 1-1/2",2"
NLK32:0.05MPA~1.6MPA (7.5PSI~232PSI) F2-1/2", F3", F3-1/2", F4", F5"
NLK31F:0.05MPA~1.6MPA (7.5PSI~232PSI) Port thread: NPT, G Thread
Voltage: DC:12VDC, 24VDC, Coils: S21H,22VA(AC),18W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC YG1B,30VA(AC),21W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston low consumption for steam
Seal- VITION, NBR, EPDM, PTFE 2. Seals suitable for steam
Armature- SS304 3. Suitable for long term pipe line system
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
NLKT11 Pilot Solenoid Valve NPT 3 / 4 " High Temperature 650 ℉
Fluid 3 / 8 to 2 Inch Thread 1 to 2 Inch Flange
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLKT1112XXX | 3/8" | 12 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Brass SS304 SS316
| PTFE PEEK | Y21H |
| NLKT1115XXX | 1/2" | 15 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1120XXX | 3/4" | 20 | 9.3 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1125XXX | 1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1132XXX | 1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1140XXX | 1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1150XXX | 2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1125XXX | F1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1132XXX | F1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1140XXX | F1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1150XXX | F2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
