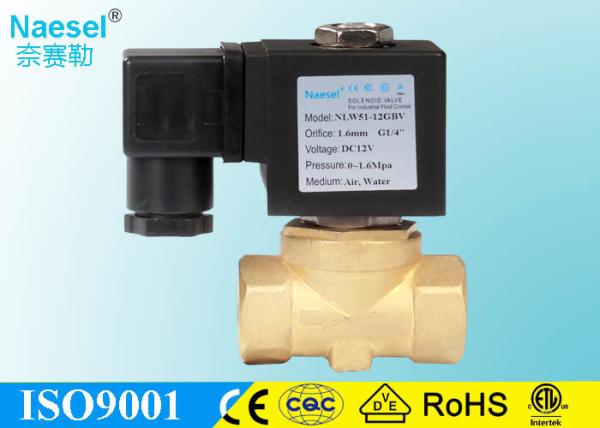

EMC SLP08 Solenoid Valve Better Quality than SLP08-030E2S1V Viton
SealYCD51 EMC SLP08 changeable solenoid valve better quality than SLP08-030E2S1E
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
NLW51 12, G- G B-Brass N-NBR S11B 1-AC220V 2-DC24V
N- NPT E-EPDM S91B 3-AC110V 4-DC12V
V-FRM/Viton 0543 5-AC24V 6-DC36V
7-DC6V
NLW51 1/4 Pilot diaphragm solenoid valve normal closed with S11B
coil
Example : NLW51 12GBN S91B1: normal closed, 15mm orifice, G1/4", brass body, Viton seals,
AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 12(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLW51:0.01MPA~1.0MPA (1.45PSI~145PSI) Port thread: NPT, G Thread
Port size: 1/4”, 3/8”, 1/2”
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: S11B,24VA(AC),15W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S91B,22VA(AC),17W(DC),IP65,100%ED
Tolerance: ±10% SA11B, 9VA(AC),6W(DC),IP65,100%ED
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot diaphragm structure,
Seal- VITION, NBR, EPDM, PTFE 2. Low consumption
Armature- SS304 3. longterm continuous working
Plunger- SS430F 4. 1 million service lifespan
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
NLW51 Pilot diaphragm solenoid valve normal closed with S11B coil
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(15W) |
| NLW5112XXX | 1/4" | 12 | 2.02 | 0.01Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | S11B |
| NLW5115XXX | 3/8" | 12 | 2.02 | 0.01Mpa | 1.0Mpa | 1.0Mpa | S11B |
| NLW5120XXX | 3/8" | 12 | 2.02 | 0.01Mpa | 1.0Mpa | 1.0Mpa | S11B |
| NLW5125XXX | 1/2" | 12 | 2.02 | 0.01Mpa | 1.0Mpa | 1.0Mpa | S11B |
| NLW5132XXX | 1/2" | 12 | 2.02 | 0.01Mpa | 1.0Mpa | 1.0Mpa | S11B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
NLW series solenoid valves support high working pressure
16bar,which is much
higher than normal 8bar. From 1/8” to 6”, this seriessolenoid
valves now has a
complete range of sizes for your options,including brass valve and
stainless steel
valve, both of SS valve and brass valve can be normal close valve
and normal open
valve, with NBR seal, EPDM seal and VITON seal, applicable for many
kind of
medium like air, gas, water, hot water, liquid, etc. According to
different industry
demand, the NLW series solenoid valve provides 10 different voltage
coils
for your use. Very popular around the world wide fluid control
system,
especially the low power solenoid valve with only 2~8 Watt, which
gives
the only solution for big overheat problem of solenoid valves at
much
lower temperature, longer life cycle, faster response, more safety
use.
