1 Gas Solenoid Valve 24V 48V Normal Closed Flow Adjustable Quick
Close off
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
NLW61-07T 7,15, 20, 25 G- G B-Brass N-NBR S91B 1-AC220V 2-DC24V
NLW61 N- NPT 3-AC110V 4-DC12V
NLW61D 5-AC24V 6-DC6V
NLW61-07T, 2 port 12 Volt Gas Solenoid Control Valve Normal Closed
Flow Adjustable Quick Shut off coil 0-1.6mpa
NLW61, 2 way 1 Gas Solenoid Valve 24V 48V Normal Closed Flow
Adjustable Quick Close off
NLW61D, 2 way 12 Volt 1 Gas Solenoid Valve 24V 48V Normal Closed
Flow Adjustable Quick Close off
Example : NLW61 40NBV S51B1: normal closed, 4.0mm orifice, NPT1/4" Thread, brass body, NBR
seals, AC110V.
2.Solenoid Valve Specification
Medium: gas Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 7, 15, 20, 25(mm)
Pressure: NLW61-07D:0.0MPA~1.6MPA (0PSI~232PSI) Port thread: NPT, G Thread
NLW61-D:0.0MPA~0.4MPA (0PSI~58PSI) Port size: 1/2”, 3/4", 1", NPT BSPP thread
Voltage: DC:12V, 24V, Coils: S91B, 22VA(AC),17W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Direct Lifting diaphragm
Seal- VITION, NBR, EPDM, PTFE 2. 0 Psi started
Armature- SS304 3. low pressure system usage
Plunger- SS430F 4. Vacuum air usage.
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3.Detailed Information
NLW61-07T adjustable Normal closed gas shut off solenoid valve 1 /
4 " inch 0.0~1.6Mpa, S51B wire DIN coil
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLW6101TXXX | 1/4" | 1.5 | 0.07 | 0.0Mpa | 1.6Mpa | 1.6Mpa | Brass | NBR | S91B |
| NLW6102TXXX | 1/4" | 2.5 | 0.21 | 0.0Mpa | 1.4Mpa | 1.4Mpa | S91B |
| NLW6103TXXX | 1/4" | 3.0 | 0.25 | 0.0Mpa | 1.2Mpa | 1.2Mpa | S91B |
| NLW6104TXXX | 1/4" | 3.5 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S91B |
| NLW6105TXXX | 1/4" | 4.0 | 0.45 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S91B |
| NLW6107TXXX | 1/4" | 5.0 | 0.6 | 0.0Mpa | 0.3Mpa | 0.3Mpa | S91B |
| NLW6107TXXX | 1/4" | 6.0 | 0.8 | 0.0Mpa | 0.2Mpa | 0.2Mpa | S91B |
NLW61 quick shut off 1 Gas Solenoid Valve 24V 48V Normal Closed
Quick Close off
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLW6115XXX | 1/2" | 15 | 4.8 | 0.0Mpa | 0.4Mpa | 0.4Mpa | Brass | NBR | S51B |
| NLW6120XXX | 3/4" | 20 | 8.6 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S51B |
| NLW125XXX | 1" | 25 | 12 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S51B |

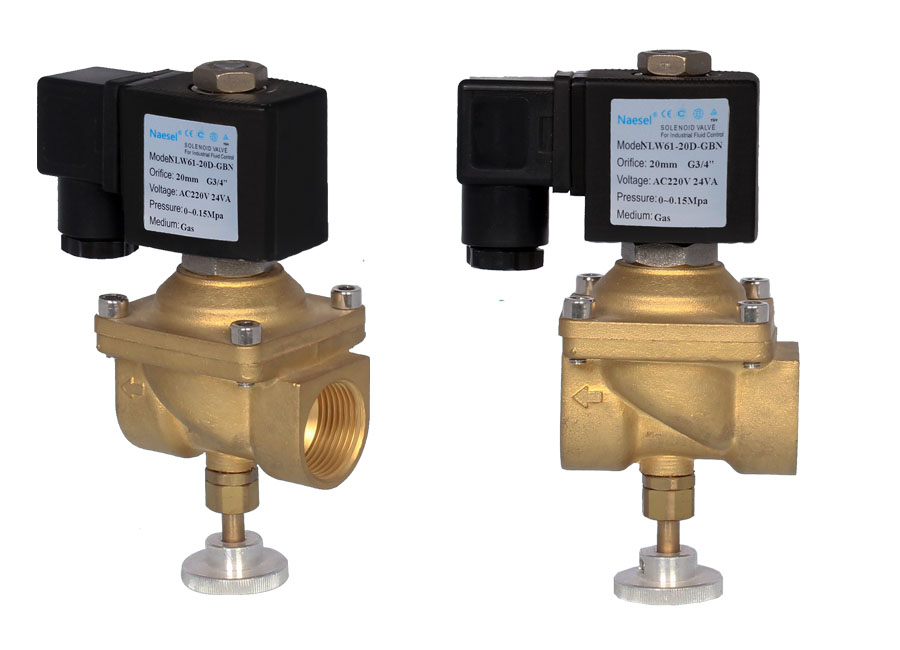

NLW61-D 1 Gas Solenoid Valve 24V 48V Normal Closed Flow Adjustable
Quick Close off
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLW6115DXXX | 1/2" | 15 | 4.8 | 0.0Mpa | 0.4Mpa | 0.4Mpa | Brass | NBR | S51B |
| NLW6120DXXX | 3/4" | 20 | 8.6 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S51B |
| NLW125DXXX | 1" | 25 | 12 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S51B |
4.Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
