1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLT41 10-1.0 30-3.0 1-1/8" G- G B-Brass N-NBR S11B 1-AC220V 2-DC24V
NLT42 15-1.5 40-4.0 2-1/4" N- NPT S-SS304/316 E-EPDM Y32B 3-AC110V 4-DC12V
NLT43 20-2.0 V-FRM/Viton S92B 5-AC24V 6-DC36V
25-2.5 NASS0543 S91B

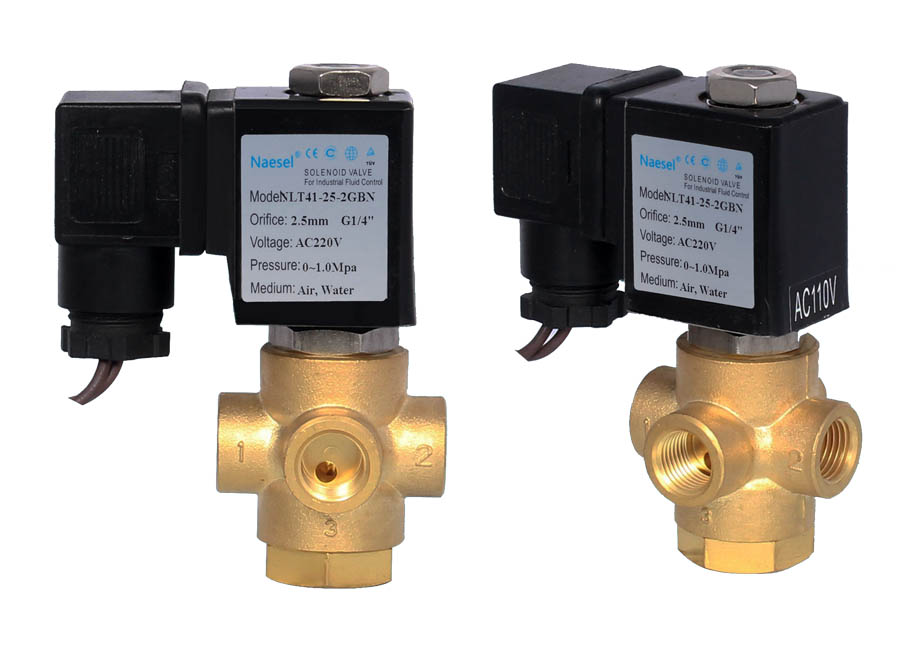

NLT41 normally closed 3 / 2 way Direct Acting Solenoid Valve 1.0-4
mm Orifice 0 to 1.5 Mpa 215PSI
NLT42 normally open 3 way directional control brass solenoid valve
NLT43 general type 3 way directional control brass solenoid valve
Example : NLT41 30 1 GBN S91B1: NLT41 Series, normal closed, 3.0mm orifice, G1/8", brass body, NBR
seals, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 1.6, 2.0, 2.5, 3.0,(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLT41:0.0MPA~1.5MPA (0.0PSI~232PSI) Port thread: NPT, G Thread
NLT42:0.0MPA~1.5MPA (0.0PSI~232PSI) Port size: 1/8”, 1/4”NPT G thread)
NLT43:0.0MPA~0.8MPA (0.0PSI~115PSI)
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: SA12B,22VA(AC),17W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S81B,22VA(AC),17W(DC),IP65,100%ED
Tolerance: ±10% SA11B,9VA(AC),6W(DC),IP65,100%EDD
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Compact design to save the space.
Seal- VITION, NBR, EPDM, PTFE 2. Direct acting, 0 bar generated.
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
NLT41 NC Directional Control Valve 3 / 2 way Direct Acting Solenoid
Valve 1.0-4 mm Orifice 0 to 1.5 Mpa 215PSI
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(20VA) | DC(15W) |
| NLT41101XXX | 1/8" | 1.0 | 0.05 | 0.0Mpa | 1.5Mpa | 1.5Mpa |
Brass SS304 SS316
|
NBR EPDM Viton (FKM) | S11B |
| NLT41151XXX | 1/8" | 1.5 | 0.07 | 0.0Mpa | 1.3Mpa | 1.3Mpa | S11B |
| NLT41201XXX | 1/8" | 2.0 | 0.14 | 0.0Mpa | 1.1Mpa | 1.1Mpa | S11B |
| NLT41251XXX | 1/8" | 2.5 | 0.21 | 0.0Mpa | 0.9Mpa | 0.9Mpa | S11B |
| NLT41301XXX | 1/8" | 3.0 | 0.25 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S11B |
| NLT41401XXX | 1/8" | 4.0 | 0.35 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S11B |
| NLT41102XXX | 1/4" | 1.0 | 0.05 | 0.0Mpa | 1.5Mpa | 1.5Mpa | S11B |
| NLT41152XXX | 1/4" | 1.5 | 0.07 | 0.0Mpa | 1.3Mpa | 1.3Mpa | S11B |
| NLT41202XXX | 1/4" | 2.0 | 0.14 | 0.0Mpa | 1.1Mpa | 1.1Mpa | S11B |
| NLT41252XXX | 1/4" | 2.5 | 0.21 | 0.0Mpa | 0.9Mpa | 0.9Mpa | S11B |
| NLT41302XXX | 1/4" | 3.0 | 0.25 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S11B |
| NLT41402XXX | 1/4" | 4.0 | 0.35 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S11B |
NLT41 NC Directional Control Valve 3 / 2 way Direct Acting Solenoid
Valve 1.0-4 mm Orifice 0 to 1.5 Mpa 215PSI
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(20VA) | DC(15W) |
| NLT42101XXX | 1/8" | 1.0 | 0.05 | 0.0Mpa | 1.5Mpa | 1.5Mpa |
Brass SS304 SS316
|
NBR EPDM Viton (FKM) | S11B |
| NLT42151XXX | 1/8" | 1.5 | 0.07 | 0.0Mpa | 1.3Mpa | 1.3Mpa | S11B |
| NLT42201XXX | 1/8" | 2.0 | 0.14 | 0.0Mpa | 1.1Mpa | 1.1Mpa | S11B |
| NLT42251XXX | 1/8" | 2.5 | 0.21 | 0.0Mpa | 0.9Mpa | 0.9Mpa | S11B |
| NLT42301XXX | 1/8" | 3.0 | 0.25 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S11B |
| NLT42401XXX | 1/8" | 4.0 | 0.35 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S11B |
| NLT42102XXX | 1/4" | 1.0 | 0.05 | 0.0Mpa | 1.5Mpa | 1.5Mpa | S11B |
| NLT42152XXX | 1/4" | 1.5 | 0.07 | 0.0Mpa | 1.3Mpa | 1.3Mpa | S11B |
| NLT42202XXX | 1/4" | 2.0 | 0.14 | 0.0Mpa | 1.1Mpa | 1.1Mpa | S11B |
| NLT42252XXX | 1/4" | 2.5 | 0.21 | 0.0Mpa | 0.9Mpa | 0.9Mpa | S11B |
| NLT42302XXX | 1/4" | 3.0 | 0.25 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S11B |
| NLT42402XXX | 1/4" | 4.0 | 0.35 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S11B |
NLT43 Bi-directional Control Valve 3 / 2 way Direct Acting Solenoid
Valve 1.0-4 mm Orifice 0 to 1.5 Mpa 215PSI
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(20VA) | DC(15W) |
| NLT43101XXX | 1/8" | 1.0 | 0.05 | 0.0Mpa | 0.9Mpa | 0.9Mpa |
Brass SS304 SS316
|
NBR EPDM Viton (FKM) | S11B |
| NLT43151XXX | 1/8" | 1.5 | 0.07 | 0.0Mpa | 0.7Mpa | 0.7Mpa | S11B |
| NLT43201XXX | 1/8" | 2.0 | 0.14 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S11B |
| NLT43251XXX | 1/8" | 2.5 | 0.21 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S11B |
| NLT43301XXX | 1/8" | 3.0 | 0.25 | 0.0Mpa | 0.3Mpa | 0.3Mpa | S11B |
| NLT43401XXX | 1/8" | 4.0 | 0.35 | 0.0Mpa | 0.2Mpa | 0.2Mpa | S11B |
| NLT43102XXX | 1/4" | 1.0 | 0.05 | 0.0Mpa | 0.9Mpa | 0.9Mpa | S11B |
| NLT43152XXX | 1/4" | 1.5 | 0.07 | 0.0Mpa | 0.7Mpa | 0.7Mpa | S11B |
| NLT43202XXX | 1/4" | 2.0 | 0.14 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S11B |
| NLT43252XXX | 1/4" | 2.5 | 0.21 | 0.0Mpa | 0.4Mpa | 0.4Mpa | S11B |
| NLT43302XXX | 1/4" | 3.0 | 0.25 | 0.0Mpa | 0.3Mpa | 0.3Mpa | S11B |
| NLT43402XXX | 1/4" | 4.0 | 0.35 | 0.0Mpa | 0.2Mpa | 0.2Mpa | S11B |

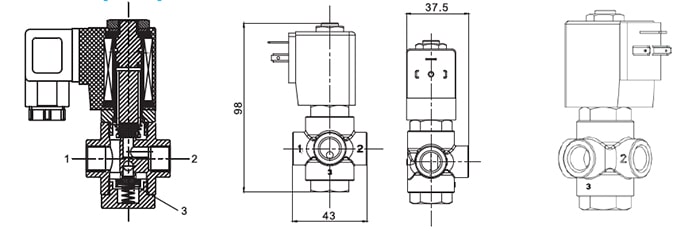

4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
