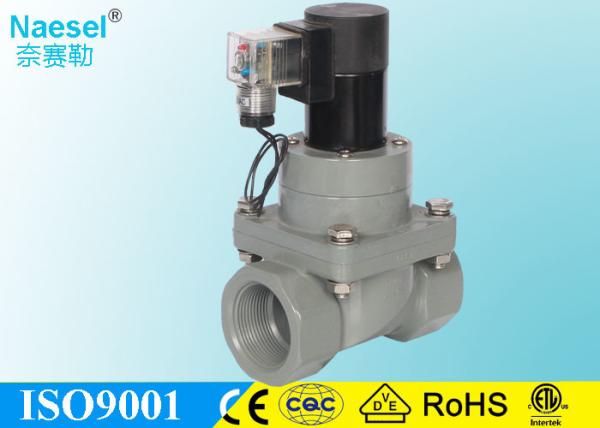

Corrosive Resistant Solenoid Valve G 1 / 2 to 2 Inch Weak Acid Weak
Alkali Solenoid Valve
Corrosive Resistant Solenoid Valve G 1 / 2 to 2 Inch Weak Acid Weak
Alkali Solenoid Valve
Corrosive Resistant Solenoid Valve G 1 / 2 to 2 Inch Weak Acid Weak
Alkali Solenoid Valve
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLUK31 15, 20, 25, 1/2" to 2" G-G U-UPVC V-FRM/Viton YC1B 1-AC220V 2-DC24V
32, 40, 50(mm) N-NPT C-CPVC P-PTFE YE1B
F-Flange YF1B
NLUK31, Corrosive Resistant Solenoid Valve G 1 / 2 to 2 Inch Weak Acid
Weak Alkali Solenoid Valve
Example : NLUK3115 GBP Y21H1: NLUK Series, Normal closed, 15mm orifice, G1/2", brass body, PTFE
seals, AC220V.
2. Solenoid Valve Specification
Medium: Acid, Alkali, Salt or other corrosive fluid etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)
Orifice: 15 , 20, 25, 32, 40, 50 (mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Pressure: NLUK31:0.01MPA~0.6MPA (1.45PSI~87PSI) Port thread: NPT, G Thread, Flange
ZCZ12:0.03MPA~1.0MPA (4.5PSI~145PSI) Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2"
Voltage: DC:12V, 24V Coils: YC1B 15VA(AC),16W(DC),IP65,100%ED
YE1B 15VA(AC),16W(DC),IP65,100%ED
YF1B 15VA(AC),16W(DC),IP65,100%ED
Tolerance: ±10% Character: 1. Low consumption for continuous operation
Material: Body- CVPC UPVC 2. Pilot acting, 0.1 bar generated.
Seal- VITION, EPDM
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Dimension
4. Specification Detail
NLUK31, Normally Closed Corrosive Resistant Solenoid Valve G 1 / 2
to 2 Inch Weak Acid Weak Alkali Solenoid Valve
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(18VA) | DC(16W) |
| NLUK3115XXX | 1/2" | 15 | 4.5 | 0.01Mpa | 0.6Mpa | 0.6Mpa | UPVC CPVC
| Viton (FKM) EPDM | YC1B |
| NLUK3120XXX | 3/4" | 20 | 9.3 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3125XXX | 1" | 25 | 12 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3132XXX | 1-1/4" | 32 | 24 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3140XXX | 1-1/2" | 40 | 29 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3150XXX | 2" | 50 | 48 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3115XXX | F1" | 25 | 12 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3132XXX | F1-1/4" | 32 | 24 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3115XXX | F1-1/2" | 40 | 29 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
| NLUK3132XXX | F2" | 50 | 48 | 0.01Mpa | 0.6Mpa | 0.6Mpa | YC1B |
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
