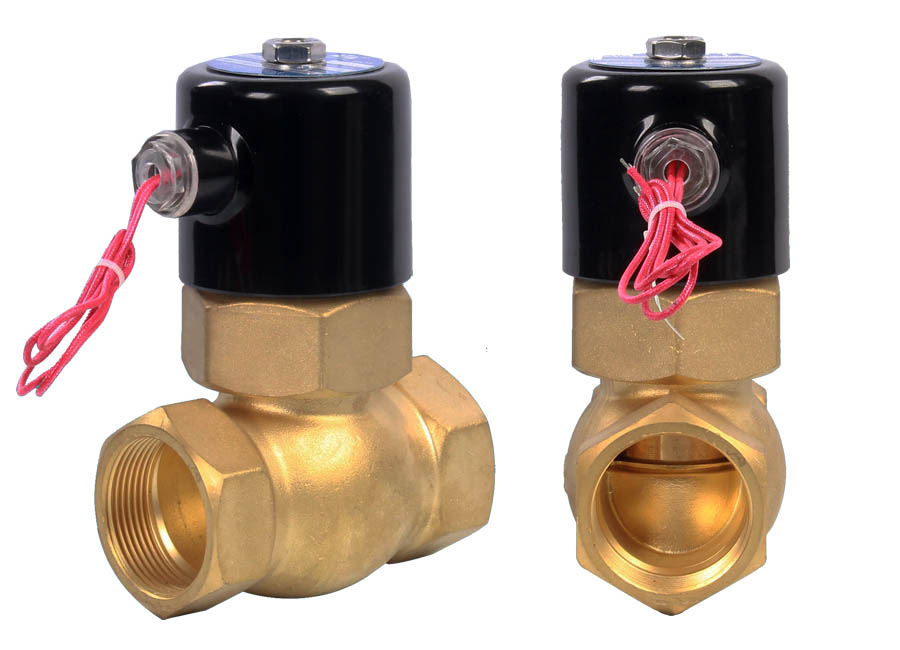

2L / US-50 2 inch brass steam solenoid normal closed NC US-50
piston pilot 200 degree
2L-50 2 inch brass steam solenoid normal closed NC US-50 piston
pilot 200 degree
2L Series Pilot Operated Piston1/2" -2" Normally Closed
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
2L 15, 20, 25, 32 G- G B-Brass V-FRM/Viton Y42H 1-AC220V 2.DC24V
40, 50(mm) N- NPT S-SS304/316 P-PTFE 3-AC110V 4.DC12V
R- BSPT 5-AC24V 6-DC6V
2L-50 2 inch brass steam solenoid normal closed NC US-50 piston
pilot 200 degree
Example : 2L15 GBP Y42H1: 2L Series, Normal open, 15mm orifice, G1/2", brass body, PTFE
seals, Coil Y42H, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)
Orifice: 15 , 20, 25, 32, 40, 50 (mm) PTFE seal:-30℃~200℃(-22℉~382℉)
Pressure: 2L:0.03MPA~1.6MPA (0.0PSI~232PSI)
Port thread: NPT, G Thread Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2"
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: Y42H 50VA(AC),20W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR, EPDM, PTFE
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V

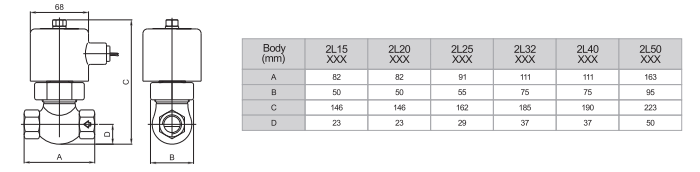

3. Dimension
4. Specification Detail
2L-50 2 inch brass steam solenoid normal closed NC US-50 piston
pilot 200 degree
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(50VA) | DC(20W) |
| 2L15XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa |
Brass
| Viton (FKM) PTFE | Y42H |
| 2L20XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L25XXX | 1" | 25 | 12 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L32XXX | 1-1/4" | 32 | 24 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L40XXX | 1-1/2" | 40 | 29 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
| 2L50XXX | 2" | 50 | 48 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Y42H |
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
