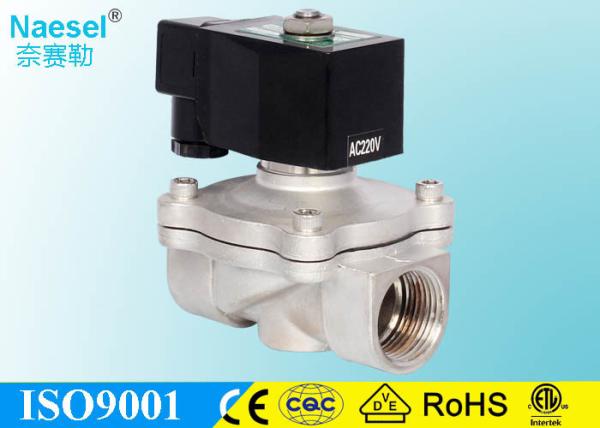

2W21 general 2/2 way DN15 G1/2" diaphragm solenoid valve 2W
solenoid valve
general 2/2 way DN15 G1/2" diaphragm solenoid valve 2W solenoid
valve
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
2W11 12, 15, 20, G- G B-Brass N-NBR S91B 1-AC220V 2.DC24V
2W21 25, 32, 40, N- NPT S-SS304,SS316 E-EPDM Y32B 3-AC110V 4.DC12V
2W31 50 R- BSPT V-FRM/Viton Y32B 5-AC24V 6-DC6V
2W41 7-DC36V
2W12 NASS0543
NLCU Series normally closed with S21B coil, DIN
Example : NLCU 25 GBN S21B1: NLCU Series, normal open, 25mm orifice, G1", brass body, NBR seals,
coil S21B, AC220V.
2. Solenoid Valve Specification
Medium: Air, city gas, water, oil, petroleum Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 12, 15, 20, 25, 32,40,50, EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLCULHN41:0.05~1.6MPA (7.5PSI~2320PSI) Port thread: NPT, G Thread
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: S51B,30VA(AC),25W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VACCharacter: 1. Compact design to save the space.
Tolerance: ±10% 2. Direct acting, 0 bar generated.
Material: Body- Brass, stainless steel, Aluminum,
Seal- VITION, NBR, EPDM,
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| 2W2112XXX | 3/8" | 12 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa |
Brass SS304 SS316 Nylon
| NBR EPDM Viton (FKM) | S51B |
| 2W2115XXX | 1/2" | 15 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| 2W2120XXX | 3/4" | 20 | 9.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| 2W2125XXX | 1" | 25 | 12 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| 2W2132XXX | 1-1/4" | 32 | 24 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
| 2W2140XXX | 1-1/2" | 40 | 29 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
| 2W2150XXX | 2" | 50 | 48 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.

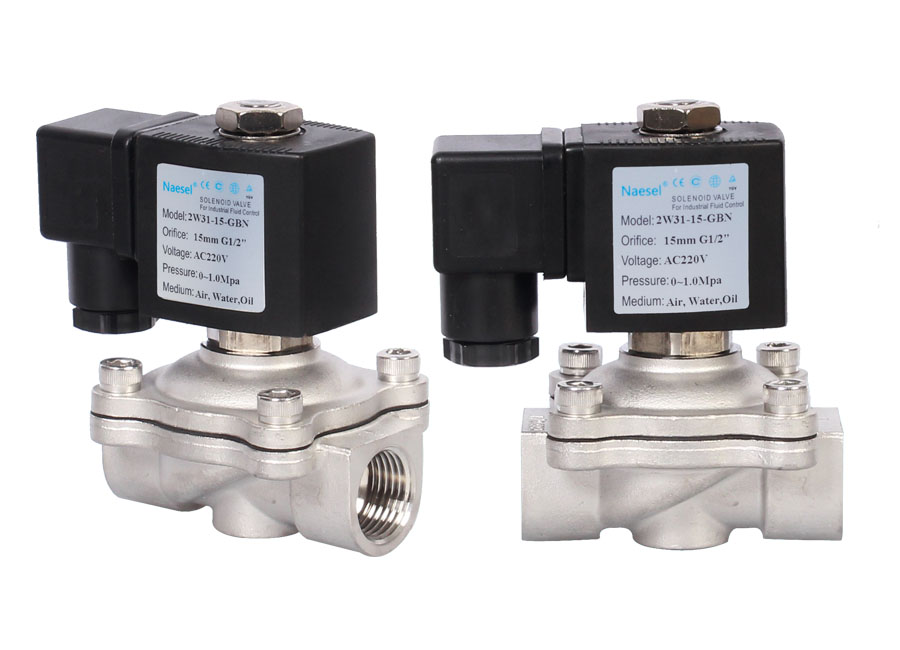

6. More Product Photo and Certifications
