16BAR Solenoid 1 Inch Valve Pilot Diaphragm Low Consumption for
Water Pipe
16BAR 1 Inch Solenoid Valve Pilot Diaphragm Low Consumption for
Water Pipe
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
NLK11 12, 15, 20, G- G B-Brass P-PTFE S21H 1-AC220V 2-DC24V
NLK12 25 N- NPT S-SS304/316 3-AC110V 4-DC12V
5-AC24V

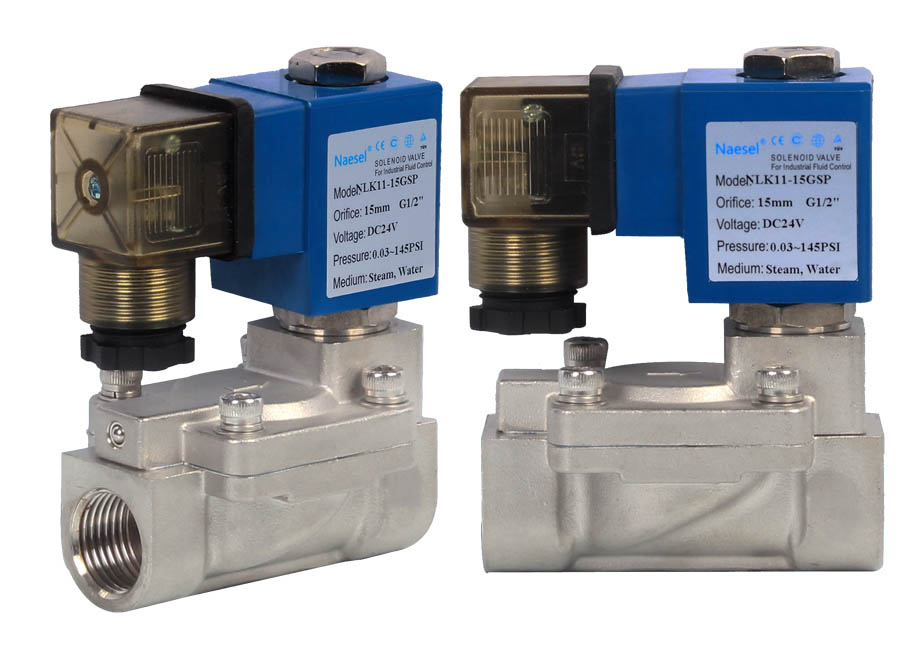

NLK11 Stainless Steel 16BAR Solenoid 1 Inch Valve Pilot Diaphragm
Low Consumption for Water Pipe 0.03~1.6Mpa
Example : NLK11 25NSV S11H2: normal closed, 25mm orifice, NPT1", SS316 body, PTFE seals, DC24V.
2. Solenoid Valve Specification
Medium: Steam, hot water, ammonia, air, etc. Temperature: PTFE seal:-30℃~392℃(14℉~176℉)
Orifice: 12, 15, 20, 25(mm)
Pressure: NLK11:0.03MPA~1.6MPA (4.35PSI~232PSI) Port thread: NPT, G Thread
Port size: 1/4”, 3/8”, 1/2”, 1"
Voltage: DC:6V,12V, 24V, 36V, Coils: S21H,24VA(AC),18W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot diaphragm structure,
Seal- VITION, NBR, EPDM, PTFE 2. Low consumption
Armature- SS304 3. special for longterm continuous working
Plunger- SS430F 4. 1 million operation lifespan
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
NLK11 Stainless Steel 16BAR Solenoid 1 Inch Valve Pilot Diaphragm
Low Consumption for Water Pipe
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLK1112XXX | 3/8" | 12 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Brass | NBR EPDM Viton (FKM) | S21H |
| NLK1115XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK1120XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK1125XXX | 1" | 25 | 12 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S21H |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
