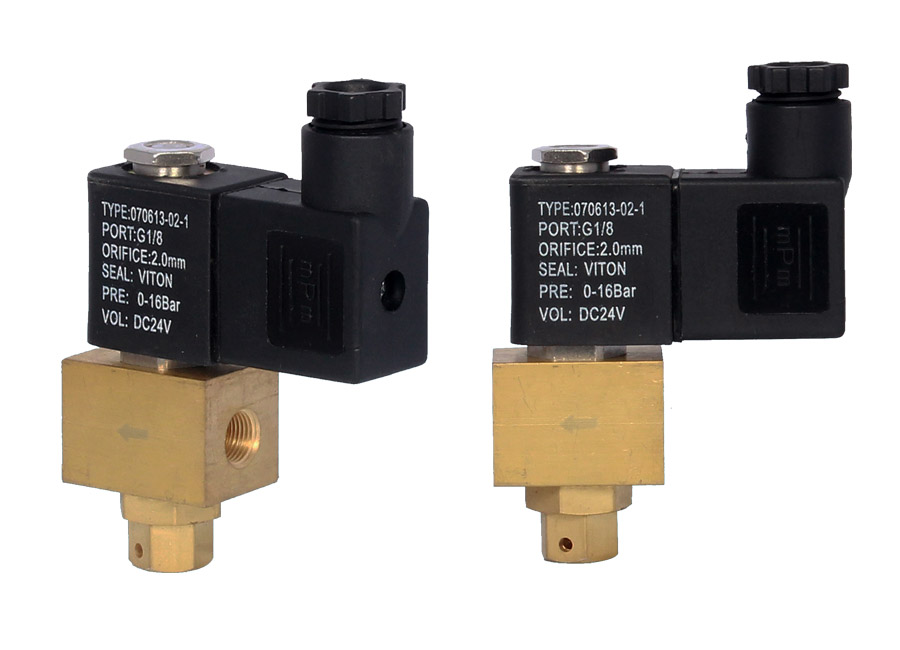

flow adjustable solenoid valve for fuel diesel oil 1 / 8 inch bspp
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NL070613 2.0 1-1/8" G- G B-Brass V-FKM S81B 1-DC12V 2.DC24V
2.5 E-EPDM
Flow adjustable solenoid valve for fuel diesel oil 1 / 8 inch bspp
Example : NL070613 GBV S81B1: NL070613 Series, Normal closed, 2.0mm orifice, G1/8", brass, Viton
seals, AC220V.
2.Solenoid Valve Specification
Medium: Air, fuel, diesel etc. Temperature: EPDM seal:-30℃~120℃(-22℉~248℉)
Orifice: 2.0, 2.5 (mm) Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NL070613:0.00MPA~1.6MPA (0.0PSI~230PSI) Port thread: G Thread
Port size: 1/8”.
Voltage: DC:12VDC, 24VDC Coils: S81B, 6.5W(DC),Coil IP65,100%ED
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR,
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Dimension
4. Specification Detail
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| DC(6.5W) |
| NL070613XXX | 1/8" | 2.0 | 0.14 | 0.00Mpa | 1.6Mpa | Brass | Viton EPDM | S81B |
| NL070613XXX | 1/8" | 2.5 | 0.21 | 0.00Mpa | 1.6Mpa | S81B |
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
