mini latching solenoid valve for public toilet public bath or
public toilet
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLO41 1.6, 2.5, 3.0 1/8" G- G B-Brass N-NBR L21B 1-DC24V
9.0 1/4" N- NPT S-SS304/316 V-FKM 2-DC12V
1/2" P-POM E-EPDM 3-DC6V
NLO11 mini latching solenoid valve for public toilet public bath or
public toilet
Example : NLO41 25 1 NPV L11B1: NLO41 type, normal closed 2.5mm orifice, G1/8" port, POM body,
Viton seals.
2.Solenoid Valve Specification
Medium: water etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 1.6, 2.5, 3.0, 9.0(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLO41:0.0MPA~1.0MPA (0.0PSI~145PSI) Port size: 1/8", 1/4" , 1/2”
Port thread: NPT, G Thread
Voltage: DC:12V, 24V, 6V Coils: L21B,2W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. latching coil, no need to keep electrico
Seal- VITION, NBR, EPDM, PTFE 2. 0 Pressure started for direct acting type
Armature- SS304 3. Low consumption
Plunger- SS430F 4. suitbale for public toilet and bath
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3.Detailed Information
NLO41 normal closed mini latching solenoid valve
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| DC(2W) |
| NLO41161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 1.0Mpa | Brass SS304 SS316 POM
| NBR EPDM FKM | L21B |
| NLO41251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 1.0Mpa | L21B |
| NLO41301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 0.8Mpa | L21B |
| NLO41252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 1.0Mpa | L21B |
| NLO41302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 0.8Mpa | L21B |
| NLO41904XXX | 1/2" | 9.0 | 0.3 | 0.0Mpa | 0.8Mpa | L21B |

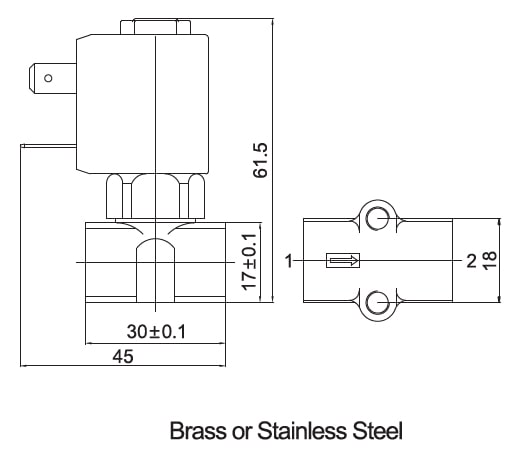

4.Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
