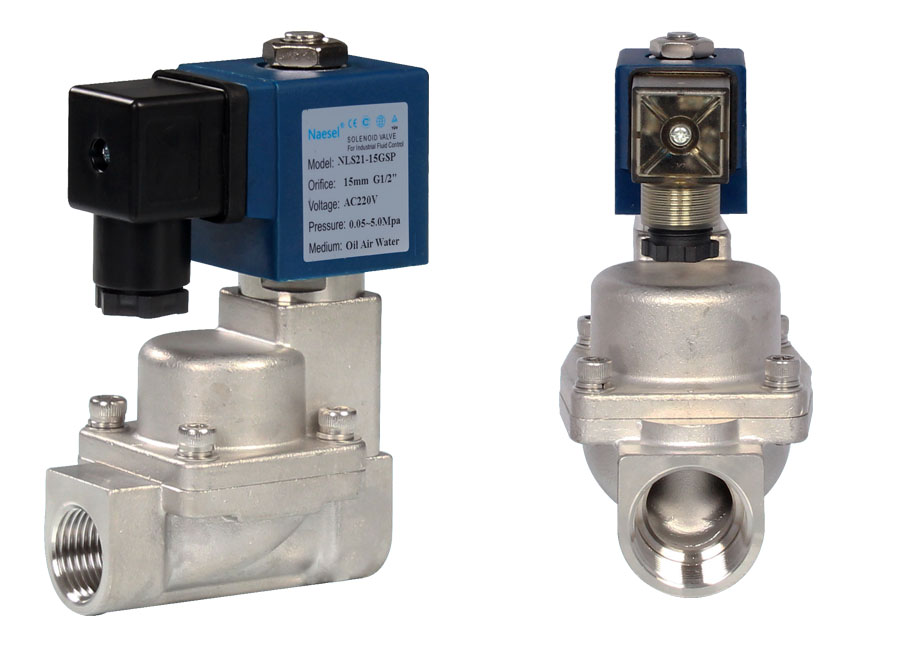

injection machine high pressure solenoid valve pilot diaphragm 3 /
4 inch
Injection machine high pressure solenoid valve pilot diaphragm 3 /
4 inch
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLS11 15 3/8" G- G B-Brass U-PU S91B 1-AC220V 2.DC24V
, 1/2" N- NPT NASS0543 3-AC110V 4.DC12V
3/4" F-Flange 5-AC24V
NLS11 normally closed pilot diaphragm steam hot oil solenoid valve
with S91B, coil,
Example : NLS2 25 1 GBP S91B1: NLKH31 type, normal closed 25mm orifice, G1", brass body, PTFE
seals.
2. Solenoid Valve Specification
Medium: Compressed air, water etc Temperature: PU seal:-30℃~150℃(-22℉~302℉)
Orifice: 12, 15, 20(mm)
Pressure: NLS11:0.03MPA~5.0MPA (4.5PSI~725PSI) Port size: 3/8”, 1/2”, 3/4”
Port thread: NPT, G Thread
Voltage: DC:12V, 24V, Coils: S91B,22VA(AC),17W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston for compressed air
Seal- VITION, NBR, EPDM, PTFE 2. 2 bar Pressure started
Armature- SS304 3. Suitable for long term pipe line system
Plunger- SS430F 4. suitbale for low pressure system
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
NLS11 normally closed pilot diaphragm solenoid valve with S91B
coil,
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLS1112XXX | 3/8" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | Brass | PU | S91B |
| NLS1115XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
| NLS1120XXX | 3/4" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
NLS12 normally closed pilot diaphragm solenoid valve with S91B
coil,
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLS1212XXX | 3/8" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | Brass | PU | S91B |
| NLS1215XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
| NLS1220XXX | 3/4" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
