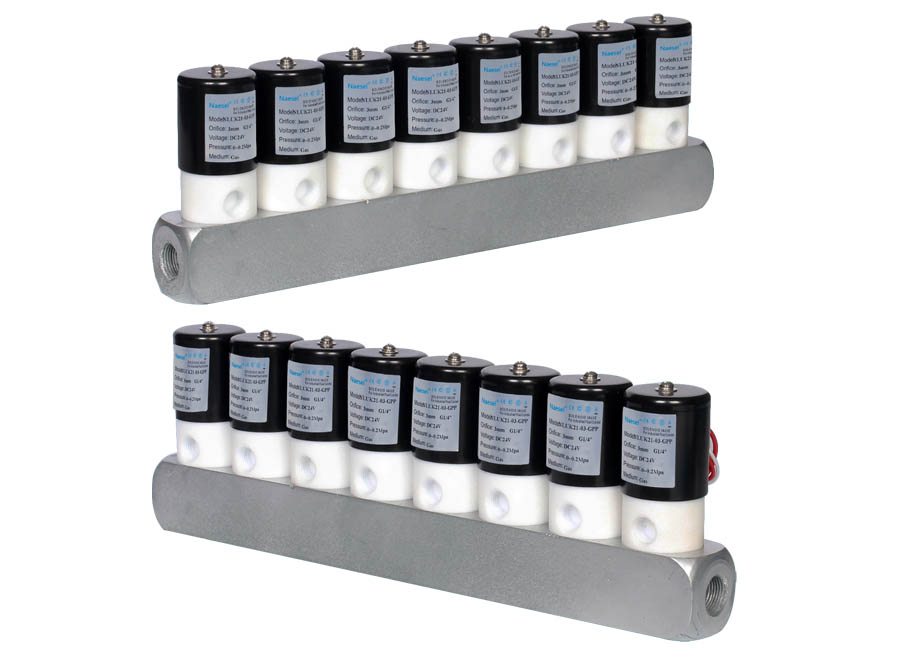

modular solenoid valve multi position install compact brass
solenoid valve
Modular solenoid valve multi position install compact brass
solenoid valve
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLHN21 16-1.6 1-1/8" G- G B-Brass N-NBR SA12B 1-AC220V 2.DC24V
NLHN22 20-2.0 2-1/4" N- NPT S-SS304/316 E-EPDM S81B 3-AC110V 4.DC12V
25-2.5 V-FRM/Viton SA11B 5-AC24V 6-DC6V
30-3.0 NASS0543 7-DC36V
NLHN21 normally closed with S91B coil,
NLHN22 normally open with S91B coil,
Example : NLHN32 30 1 GBN S91B1: NLHN32 Series, normal open, 3.0mm orifice, G1/8", brass body, NBR
seals, boil S91B, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 1.6, 2.0, 2.5, 3.0,(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLHN21:0.0MPA~1.6MPA (0.0PSI~232PSI) Port thread: NPT, G Thread
NLHN22:0.0MPA~1.6MPA (0.0PSI~232PSI) Port size: 1/8”, 1/4”NPT G thread)
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: SA12B,22VA(AC),17W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S81B,22VA(AC),17W(DC),IP65,100%ED
Tolerance: ±10% SA11B, 9VA(AC),6W(DC),IP65,100%EDD
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Compact design to save the space.
Seal- VITION, NBR, EPDM, PTFE 2. Direct acting, 0 bar generated.
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(9VA) | DC(6W) |
| NLHN21161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 1.6Mpa | 1.6Mpa |
Brass SS304 SS316
|
NBR EPDM Viton (FKM) | SA11B |
| NLHN21251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 1.2Mpa | 1.2Mpa | SA11B |
| NLHN21301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| NLHN21252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 1.2Mpa | 1.2Mpa | SA11B |
| NLHN21302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(9VA) | DC(6W) |
| NLHN22161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 1.0Mpa | 1.0Mpa |
Brass SS304 SS316
|
NBR EPDM Viton (FKM) | SA11B |
| NLHN22251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| NLHN22301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| NLHN22252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 0.8Mpa | 0.8Mpa | SA11B |
| NLHN22302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 0.6Mpa | 0.6Mpa | SA11B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
