High Pressure Pneumatic Solenoid Valve Normal Closed 3000 PSI NPTF 3 / 8 and 1 / 2

High Pressure Pneumatic Solenoid Valve Normal Closed 3000 PSI NPTF 3 / 8 and 1 / 2

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLS41 9.0(mm) 2-1/4" G- G B-Brass P-PTFE GE11B 1-AC220V 2.DC24V

3-3/8" N- NPT S-SS304/316 V-Viton S91B 3-AC110V 4.DC12V

4-1/2" 5-AC24V

NLS41,High Pressure Pneumatic Solenoid Valve Normal Closed 3000 PSI NPTF 3 / 8 and 1 / 2

Example : NLS41 10 2 GST S91B1: NLS41 type, normal closed, 9.0mm orifice, G1/4", Stainless steel body, PTFE seals.

2. Solenoid Valve Specification

Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)

Orifice: 1.0, 1.6(mm) PET seal:-40℃~150℃(-40℉~302℉)

Pressure: NLS41:0.00MPA~12MPA (0.0PSI~1740PSI) Port size: 1/4”, 3/8”, 1/2”

Port thread: NPT, G Thread

Voltage: DC:12VDC, 24VDC, Coils: GE11B,5.5VA(AC),3W(DC),IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S91B, 22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston strcuture

Seal- PEEK PTFE 2. Suitable for air compressor

Armature- SS304 3. PTFE/Viton Seal

Plunger- SS430F 4. Low consumption coil(4.5W DC)

Stop- SS430F

Spring- SS304

Shading Rings- Copper

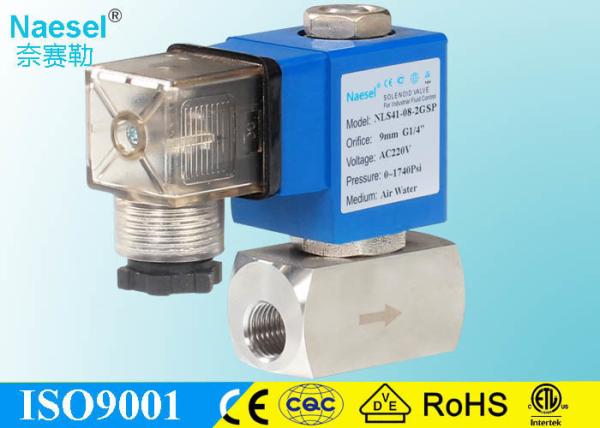

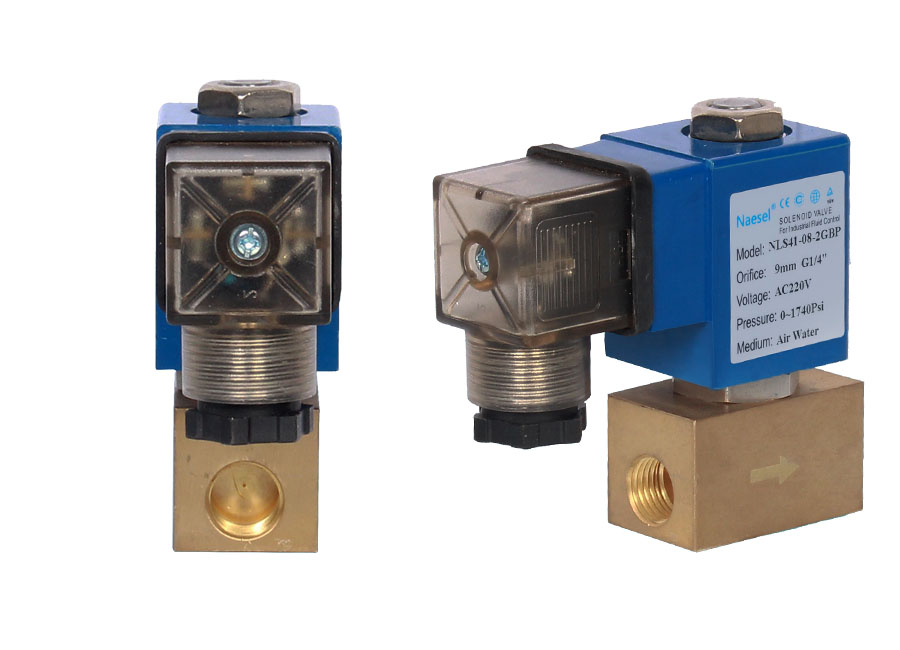

3. Detailed Information

High Pressure Pneumatic Solenoid Valve Normal Closed 3000 PSI NPTF 3 / 8 and 1 / 2

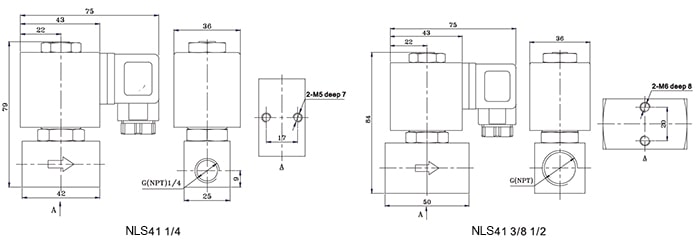

4. Diemsion

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.
