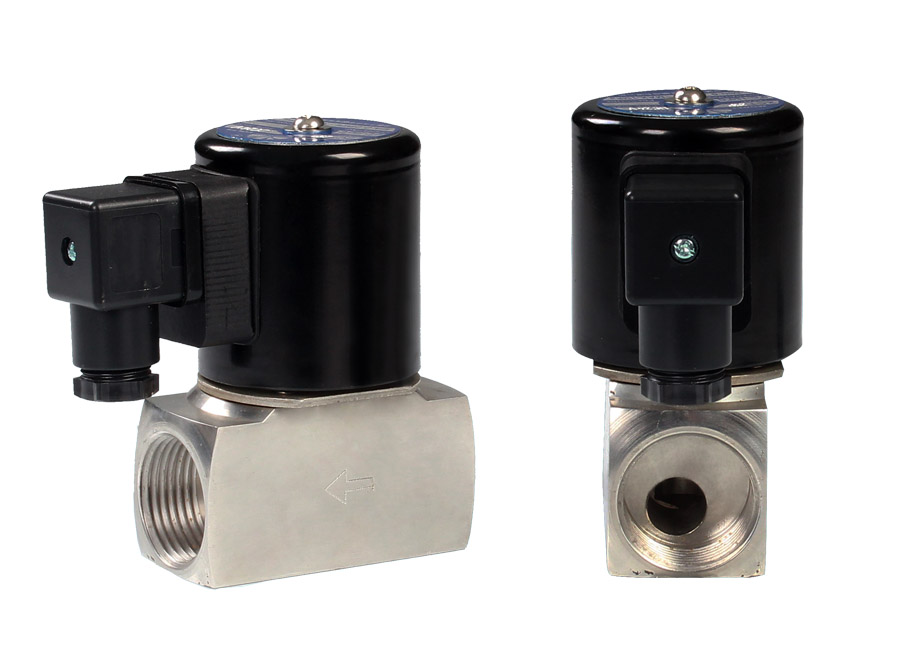

1 Inch Compact Pilot Solenoid Valve Normal Closed for Steam Hot
Water ZCT-25
1 Inch Compact Pilot Solenoid Valve Normal Closed for Steam Hot
Water ZCT-25
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
ZCT21 05-5(mm) 1/2" G- G P-PTFE S21B 1-AC220V 2-DC24V
15-10(mm) 1/2" N- NPT SS304/SS316 V-Viton Y32H 3-AC110V 4-DC12V
20-15(mm) 3/4" 5-AC24V 6-DC6V
25-15(mm) 1"
ZCT21, 2 way Normal closed 1 Inch Compact Pilot Solenoid Valve
Normal Closed for Steam Hot Water ZCT-25
Example : ZCT21 05 GSP S21B1: normal closed, 5mm orifice, G1/2", stainless steel body, PTFE
seals, AC220V.
2. Solenoid Valve Specification
Medium: air water Temperature: Viton seal:-30℃~150℃(-22℉~302℉)
Orifice: 5, 10, 15(mm) PTFE seal:-60℃~200℃(-76℉~392℉)
Pressure: ZCT21:0.0~14.5BAR (0PSI~145PSI) Port thread: NPT, G Thread
Port size: 1/2”, 3/4", 1", NPT BSPP thread
Voltage: DC:12V, 24V, Coils: S21B,30VA(AC), 18W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10%
Material: Body- Brass, stainless steel,S316/304 Character: 1. pilot piston structure
Seal- VITION, NBR, EPDM, PTFE 2. low consumotion
Armature- SS3043. 10bar with 5-15mm orifice
Plunger- SS430F 4. compact design
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
ZCT21, 2 way Normal closed 1 Inch Compact Pilot Solenoid Valve
Normal Closed for Steam Hot Water ZCT-25
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(20VA) | DC(18W) |
| ZCT2105XXX | 1/2" | 5 | 0.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SS304 SS316 | PTFE Viton | S21B |
| ZCT2115XXX | 1/2" | 10 | 2.8 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S21B |
| ZCT2120XXX | 3/4" | 15 | 2.8 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S21B |
| ZCT2125XXX | 1" | 15 | 2.8 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S21B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
