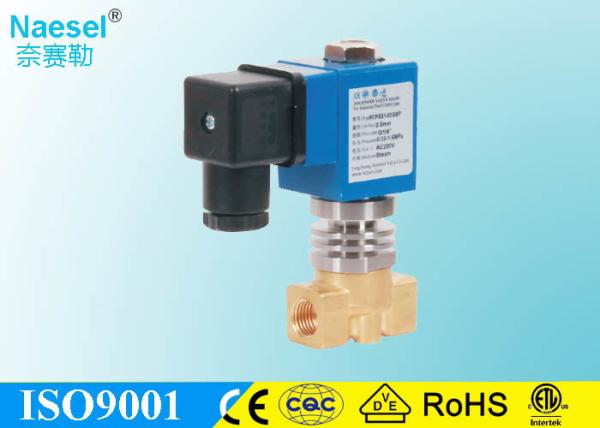

Compact High Temperature Solenoid Valve 0 Pressure PEEK Seal Max
660 ℉ NPT thread
Compact High Temperature Solenoid Valve 0 Pressure PEEK Seal Max
660 ℉ NPT thread
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLKT31 10-1.0, 15-1.5 1-1/8" G- G B-Brass P-PTFE GE11B 1-AC220V 2.DC24V
20-2.0, 25-2.5 2-1/4" N- NPT S-SS304/316 T-PEEK 3-AC110V 4.DC12V
30-3.0, 40-4.0 3-3/8" 5-AC24V
50-5.0, 60-6.0 4-1/2"
NLKT31, Compact High Temperature Solenoid Valve 0 Pressure PEEK
Seal Max 660 ℉ NPT thread
Example : NLKT31 30 1 GBT S91B1: NLKT31 type, normal closed 3.0mm orifice, G1/4", brass body, PEEK
seals.
2. Solenoid Valve Specification
Medium: hot water, steam, oil, etc. Temperature: PTFE seal:-60℃~200℃(-76℉~392℉)
Orifice: 1.0, 1.5, 2.0, 2.5, 3.0,4.0,5.0, PEEK seal:-150℃~350℃(-238℉~662℉)
6.0(mm)
Pressure: NLKT31:0.00MPA~4.0MPA (0.0PSI~580PSI) Port size: 1/8”, 1/4”, 3/8”, 1/2"
Port thread: NPT, G Thread
Voltage: DC:12VDC, 24VDC, Coils: G11B,5.5VA(AC),3W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. direct acting strcuture
Seal- PEEK PTFE 2. long lifespan seals for high temperature
Armature- SS304 3. Suitable for long term pipe line system
Plunger- SS430F 4.Low consumption coil(3W DC)
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
NLKT31 Compact High Temperature Solenoid Valve 0 Pressure PEEK Seal
Max 660 ℉ NPT thread
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(5.5VA) | DC(5W) |
| NLKT31101XXX | 1/8" | 1.0 | 0.05 | 0.0Mpa | 4.0Mpa | 4.0Mpa |
Brass SS304 SS316
|
PTFE Viton (FKM) | GE11B |
| NLKT31151XXX | 1/8" | 1.5 | 0.08 | 0.0Mpa | 3.0Mpa | 3.0Mpa | GE11B |
| NLKT31201XXX | 1/8" | 2.0 | 0.14 | 0.0Mpa | 2.0Mpa | 2.0Mpa | GE11B |
| NLKT31251XXX | 1/8" | 2.5 | 0.23 | 0.0Mpa | 1.7Mpa | 1.7Mpa | GE11B |
| NLKT31302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 1.3Mpa | 1.3Mpa | GE11B |
| NLKT31403XXX | 3/8" | 4.0 | 0.6 | 0.0Mpa | 0.7Mpa | 0.7Mpa | GE11B |
| NLKT31503XXX | 3/8" | 5.0 | 0.65 | 0.0Mpa | 0.5Mpa | 0.5Mpa | GE11B |
| NLKT31603XXX | 3/8" | 6.0 | 0.8 | 0.0Mpa | 0.5Mpa | 0.5Mpa | GE11B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
