Pressure Differential Solenoid Valve 7 to 230 PSI Pilot Piston 1.6
MPA 230 PSI Teflon Seal
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLK31 12, 15, 20 3/8"-F5" G- G B-Brass P-PTFE S21H 1-AC220V 2.DC24V
NLK32 25, 32, 40, N- NPT S-SS304/316 V-FRM/Viton YG1B 3-AC110V 4.DC12V
50, 65, 80, F- Flange 5-AC24V
100, 125,
150
NLK31 Normal Closed Pressure Differential Solenoid Valve 7 to 230
PSI Pilot Piston 1.6 MPA 230 PSI Teflon Seal
NLK32 Normally open Pressure Differential Solenoid Valve 7 to 230
PSI Pilot Piston 1.6 MPA 230 PSI Teflon Seal
Example : NLK31 32 1 GBP S91B1: NLK31 type, normal closed 32mm orifice, G1-1/4", brass body, PTFE
seals.
2. Solenoid Valve Specification
Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)
Orifice: 12, 15, 20, 25, 32,40,50, PTFE seal:-60℃~200℃(-76℉~392℉)
65, 80, 100, 125,150(mm)
Pressure: NLK31:0.05MPA~1.6MPA (7.5PSI~232PSI) Port size: 3/8”, 1/2”, 3/4”, 1” , 1-1/4", 1-1/2",2"
NLK32:0.05MPA~1.6MPA (7.5PSI~232PSI) F2-1/2", F3", F3-1/2", F4", F5"
NLK31F:0.05MPA~1.6MPA (7.5PSI~232PSI) Port thread: NPT, G Thread
Voltage: DC:12VDC, 24VDC, Coils: S21H,22VA(AC),18W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC YG1B,30VA(AC),21W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston low consumption for steam
Seal- VITION, NBR, EPDM, PTFE 2. Seals suitable for steam
Armature- SS304 3. Suitable for long term pipe line system
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
NLK31 normally closed Pressure Differential Solenoid Valve 7 to 230
PSI Pilot Piston 1.6 MPA 230 PSI Teflon Seal
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLK3112XXX | 3/8" | 12 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Brass SS304 SS316
| PTFE Viton (FKM) | S21H |
| NLK3115XXX | 1/2" | 15 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3120XXX | 3/4" | 20 | 9.3 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3125XXX | 1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3132XXX | 1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3140XXX | 1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3150XXX | 2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3125XXX | F1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3132XXX | F1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3140XXX | F1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3150XXX | F2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
NLK32 normally open Pressure Differential Solenoid Valve 7 to 230
PSI Pilot Piston 1.6 MPA 230 PSI Teflon Seal
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLK3212XXX | 3/8" | 12 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Brass SS304 SS316
| PTFE Viton (FKM) | S21H |
| NLK3215XXX | 1/2" | 15 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3220XXX | 3/4" | 20 | 9.3 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3225XXX | 1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3232XXX | 1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3240XXX | 1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3250XXX | 2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3225XXX | F1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3232XXX | F1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3240XXX | F1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
| NLK3250XXX | F2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | S21H |
NLK31-F normally closed 5 Inch SS Solenoid Valve 7 to 230 PSI Pilot
Piston Type 1.6 MPA 16 Bar Teflon Seal
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLK3165FXXX | F2-1/2" | 65 | 85 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Brass SS304 SS316
| PTFE Viton (FKM) | YG1B |
| NLK3180FXXX | F3" | 80 | 125 | 0.05Mpa | 1.6Mpa | 1.6Mpa | YG1B |
| NLK3100FXXX | F4" | 100 | 160 | 0.05Mpa | 1.6Mpa | 1.6Mpa | YG1B |
| NLK31125FXXX | F5" | 125 | 200 | 0.05Mpa | 1.6Mpa | 1.6Mpa | YG1B |
| NLK31150FXXX | F6" | 150 | 320 | 0.05Mpa | 1.6Mpa | 1.6Mpa | YG1B |

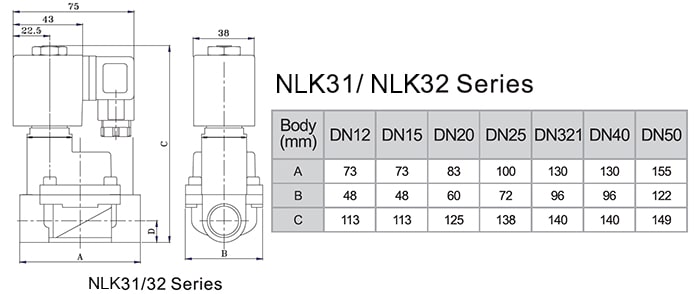

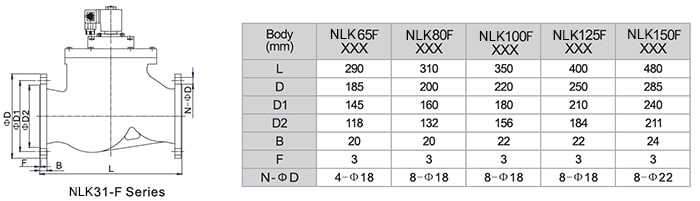

4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
